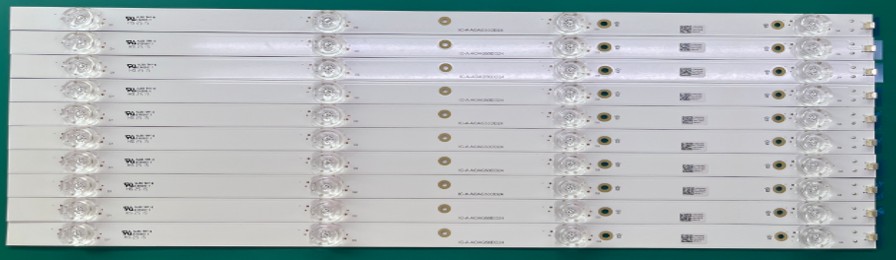

TV direct-down LED strip

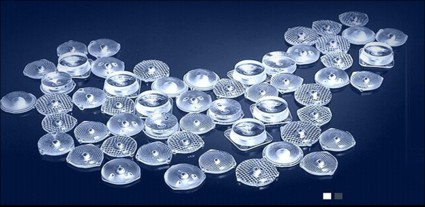

LENS
LED
- 2.0~3W
- Plastic material: SMC
- Heat dissipation design
- Low thermal resistance: <10℃/W
- High current design, 800mA
- Low light decay
- Suitable for large-size direct-lit backlights

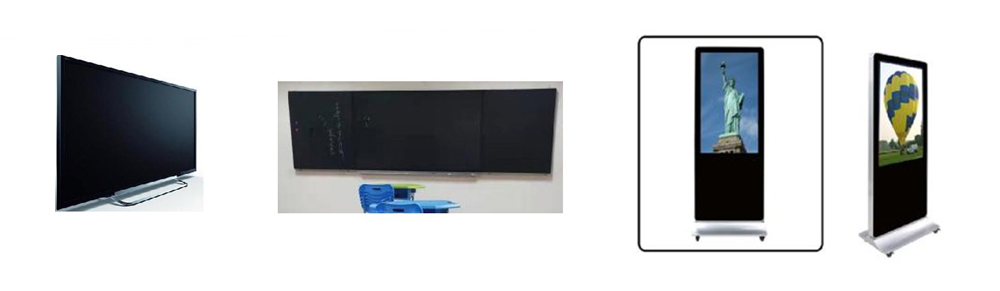

Product Application
The direct light bar is applied to all kinds of TVs, commercial displays and main components of industrial control backlight.
| application | LED | LENS | Mixing height | connect | PCB |
|---|---|---|---|---|---|
| TV | 3030 | refraction | OD15-OD22 | 2~20pin | Single-layer MCPCB 0.8~1.0 mm |
| 2835 | reflection | OD25-OD35 | 20~96pin | ||
| 1515 | ——— | OD5-OD10 | 20~96pin | FR-4, 0.8-1.0, 2-4 layer | |
| 1212 |

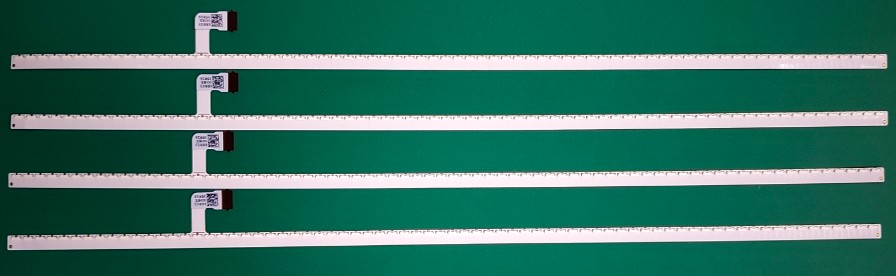

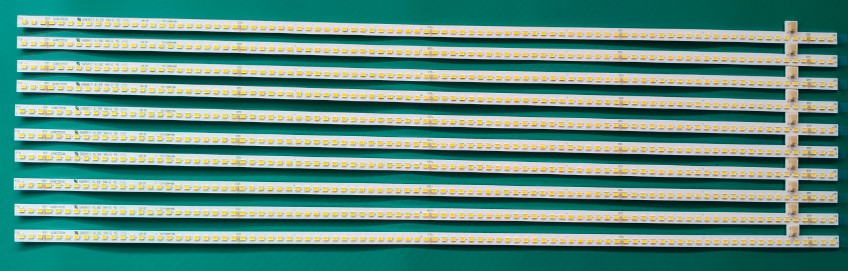

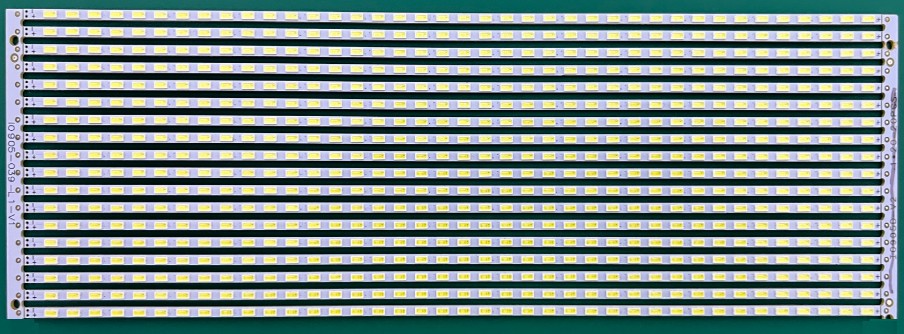

TV Side entry light strip
- 0.2W~4W
- PCT material, inner wall thickening, high strength and toughness structural design.
- Excellent airtightness and high reliability.
- Suitable for small to medium-sized side-lit models.
- Suitable for 1.5~2.5T light guide plates.
- Low thermal resistance: <25℃/W

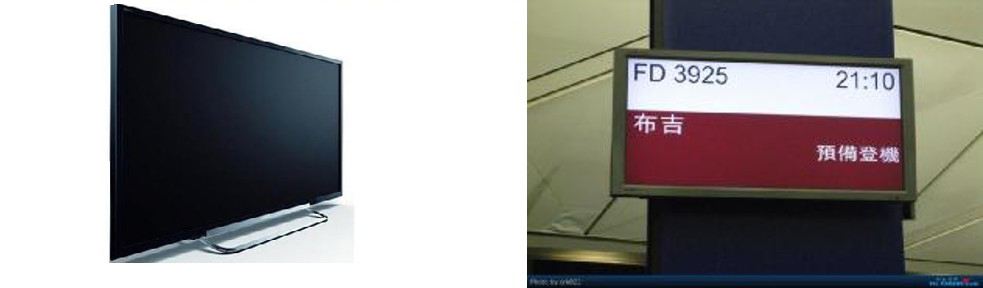

Product Application
The direct light bar is applied to all kinds of TVs, commercial displays and main components of industrial control backlight.
Vehicle side-mounted light strip
.jpg)
.jpg)
Features:
- High reliability, ESD test (HBM) ≥8000V;
- Suitable for automotive displays;
- Working temperature: -40 ° C C~105 ° C；
- Passed AEC-Q102 test;
- Certified under RoHS and REACH.

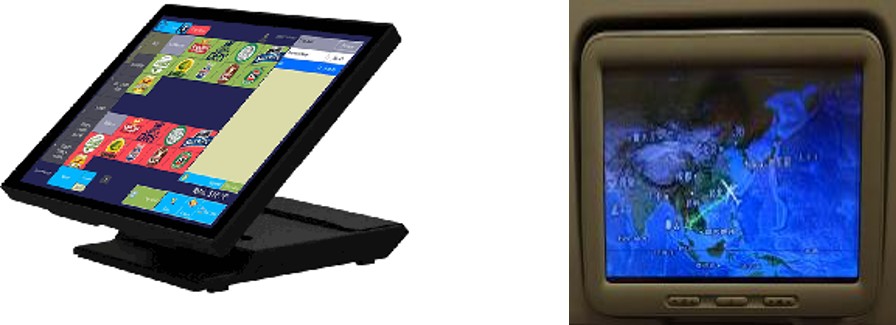

Product Application
Applications include notebook computers, industrial control systems, and automotive backlights.
| application | LED | FPC | Surface treatment |
|---|---|---|---|
| Vehicle / Industrial Control | 4014 | 2~4 layer | |
| NB | 3006 | 2~4 layer | ultrathin |

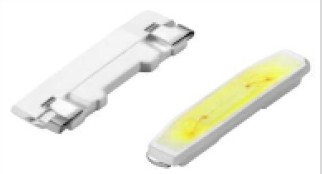

Side-entry light strip for laptops
- 0.06W~0.1W
- PCT material, strength and toughness structural design
- Excellent airtightness and high reliability.
- Suitable for small to medium-sized side-lit models.
- Suitable for 0.3~0.6T light guide plates.
- Product collinearity: 0.1mm
Product Application
Applications include notebook computers, industrial control systems, and automotive backlights.
| application | LED | FPC | Surface treatment |
|---|---|---|---|
| Vehicle / Industrial Control | 4014 | 2~4 layer | |
| NB | 3006 | 2~4 layer | ultrathin |

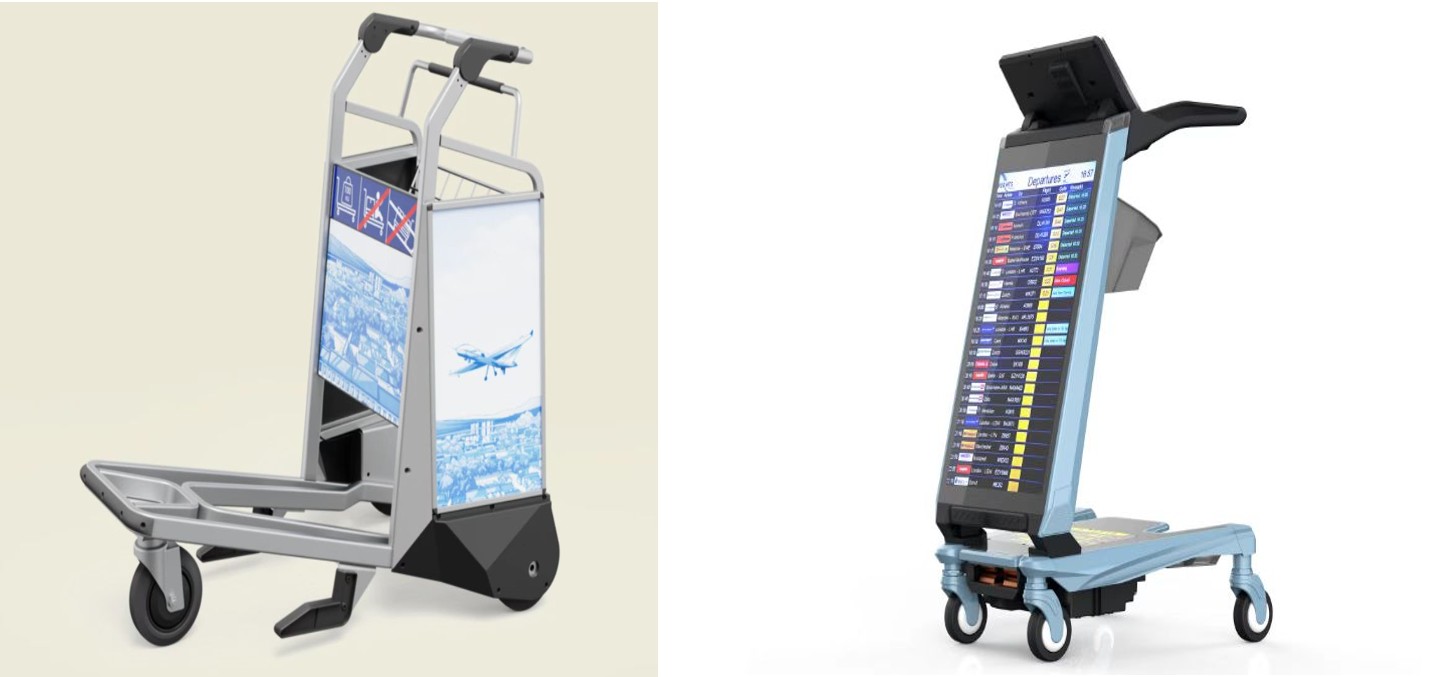

Smart trolley
